钛

印度钛经销商和供应商,检查钛2级成分和每公斤Gr5价格

钛钢等级一目了然地与ASTM标准规格和等效图

钛合金由主要是钛组成。钛是一种天然存在的强金属。与许多其他材料相比,它具有很强的磨损和撕裂。它用于密封邮票和其他必须持续更长时间的配件,而无需太多磨损。钛合金也含有其他元素。在混合物上存在不同的钛合金等级。印度的钛合金制造商也生产了一些纯钛等级。这些用于特定目的。大约40级钛包括3种不同的商业纯钛等级。这种合金价格也取决于等级和产品。 We offer a competitive pricing for titanium products. The Alloy uses differ with grades and industries. The most used grade of titanium is the grade 5. It has an inclusion of iron, oxygen and 5% vanadium and 4% aluminum. The additions improve the strength and the corrosion resistant properties. But the thermal conductivity is about 60% less than the commercially pure titanium grades. The composition also makes the alloy be more weldable and fabricable. So this is easy to use, cost effective and is widely used in a variety of applications. The applications include biomedical implants, vessels, hubs, forgings, cases, airframes, rings, fasteners, discs and blades. Titanium alloy also is used in aesthetic applications and household items sometimes. The melting point of this material is usually very high. Due to the high melting point at 1678 degree Celsius, all the alloys have a good creep resistance even in high temperatures. These could also be used under cryogenic temperatures as well. The grade 23 is the most commonly used for medical implants. We at Aesteiron produce titanium alloy products in different forms and types such as bars, rods, pipes, fittings, etc.

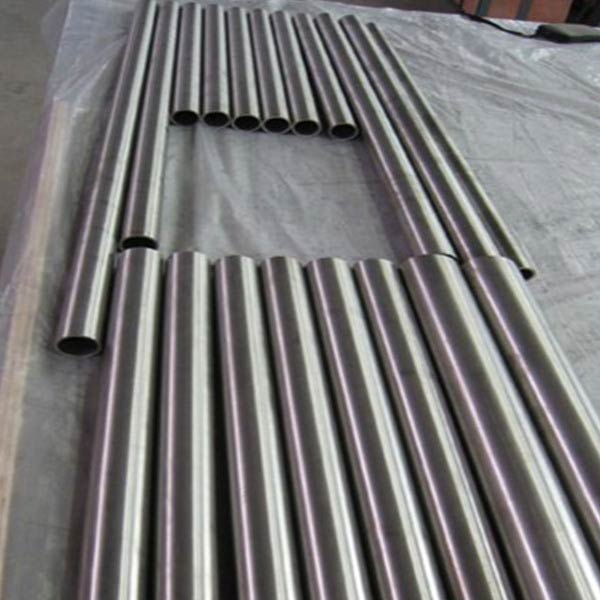

钛产品

钛价格每公斤

形状明智约价格 价格在印度卢比 价格在美元
无缝钛管,ASTM B861 GR2,退火OD 48xWT INR 1,120 15.46美元
钛无缝管等级2 INR 1,297 17.90美元
钛焊管astm b 862 gr2, 8 x SCH 10 1593年印度卢比 21.99美元
无缝钛管Astm b338 gr2 od 31.75 x宽1.0x长6000mm INR 1,160. 16.01美元
钛表6a1-4v(6台)(尺寸:2毫米x1000毫米x2000毫米) INR 4,678. 64.57美元
钛板asme sb265 gr2(2 X 650X 1000 mm) INR 3,631. 50.12美元
钛圆柱3.7165 6a / 4v(1个x 900mm) 4871年印度卢比 67.23美元
gr2 uns r50400钛棒形状圆直径1 10,00mm r / l 2000/3000mm 3020年印度卢比 41.69美元
钛圆棒,5级Ti6al-4v ams 4928 1.25 x 12r / l 3164年印度卢比 43.67美元
钛管件, asme b16.9 gr 2,尺寸:od60.3 323.9mm THK 2.77-4.57mm 4516年印度卢比 62.33美元
钛法兰Sorf sb381grf2 25 nb x 150# 4048年印度卢比 55.88美元
钛紧固件,M3x0.5x8mm长allen头螺钉 150年印度卢比 2.07美元
钛紧固件DIN 933/934 GR.2-m16 x 75螺栓和螺母 INR 5,856. 80.83美元
钛紧固件5级(尺寸- 2520389 501 15毫米) 78年印度卢比 1.08美元

钛合金种类

  • Ti 6 al-4v
  • Ti 6 al以利
  • Ti 3 al 2.5
  • Ti 5 al - 2.5 - sn

钛合金ASTM标准

ASTM的出版物

ASTM A 480 平轧及耐热钢——薄板、板、卷及带钢
ASTM E 8. 金属材料张力测试
ASTM E 120. 钛及钛基合金,半引导化学分析
ASTM E 290 金属材料延性弯曲试验

ASTM规格

ASTM-F136-98E1 锻造Ti-6铝-4钒ELI(超低空间)合金(UNSR56401)用于外科植入物应用
ASTM-F67-00. UNS R50250 / R50400 / R50550 / R50700
astm f1108 - 97 a Ti6Al4V合金铸件用于外科植入物(UNS R56406)
astm - f - 620 - 00 Alpha Plus Beta Ti合金锻件产品
ASTM-F1472-99 变形Ti-6铝-4合金UNS R56400
ASTM-F1341-99 未合金化TI线UNS R50250,R50400,R50550,R50700
astm f1295 - 97 a UNS R56700 Ti-6铝-7铌合金
ASTM b265 - 99 条带,床单,盘子
astm - b299 - 99 海绵
astm - b338 - 99 无缝,焊接管用于热交换器,锅炉,冷凝器
ASTM-B348-00 酒吧、杆、钢坯
ASTM-B363-00 无缝及焊接对焊管件(非合金)
ASTM-B367-93(1998) 铸造产品
ASTM-B381-00 锻造产品
ASTM-B861-00 无缝管
astm - b862 - 99 焊接管道
astm b863 - 99 a 电线

规范的钛

商业纯钛合金
(CP)代码 闵。ksi或屈服强度
CP-1 (70 KSI)
CP-2 (55 ksi)
CP-3 (40 KSI)
CP-4 (30 ksi)
α钛合金(A)
代码 组成图表
A-1 5 - 2.5 - sn
A2 5Al-2.5sn(Eli)
A-3 6 al - 2 - cb - 1 - ta - 0.8 - mo
A-4 8AL-1MO-1V
α-β钛合金
(AB)代码 组成图表
AB-1 6 al-4v
AB-2 6 al-4v (ELI)
AB-3. 6 al-6v-2sn
AB-4. 6AL-2SN-4ZR-2MO
AB-5 3.AL-2.5V.
AB-6. 8Mn.
β钛合金(B)
代码 组成图表
B-1 13 v-11cr-3al
B-2 11.5 mo - 6 - zr - 4.5 - sn
B-3 3 al-8v-6cr-4mo-4zr
B-4. 8MO-8V-2FE-3AL

钛合金的应用

  • 飞机引擎和框架
  • 建筑、消费
  • 工业目的
  • 医学的目的

钛化学成分标准

年级 信息
5 钛合金(6%铝,4%钒)
7 未合金化Ti加0.12%至0.25%钯,标准氧,中等强度
9 钛合金(3%铝,2.5%钒),强度高。主要是航空航天应用
11 未合金化Ti加0.12%至0.25%钯,低氧/强度
12 钛合金(0.3%钼,0.8%镍),强度高
13 Ti合金(0.5%镍,0.05%钌),低氧气
14 钛合金(0.5%镍,0.05%钌),标准氧
15 钛合金(0.5%镍,0.05%钌),中氧
16 纯钛加0.04%到0.08%的钯,中等强度,标准氧
17 未合金化Ti加0.04%至0.08%钯,低氧/强度
18 钛合金(3%铝,2.5%钒,0.04% - 0.08%钯)
19 钛合金(3%铝,8%钒,4%锆,6%铬,4%钼)
20. 钛合金(3%铝,8%钒,4%锆,6%铬,4%钼)+ 0.04%至0.08%钯
21 钛合金(15%钼,2.7%铌,3%铝,0.25%硅)
23 钛合金(4%钒,6%铝,超低间隙,ELI)
24 钛合金(4%钒,6%铝)+ 0.04%至0.08%钯
25 钛合金(4%钒,6%铝)+ 0.04% - 0.08%钯,0.3% - 0.8%镍
26 纯钛加0.08%到0.14%钌,中等强度,标准氧
27 未合金化Ti加0.08%至0.14%钌,低氧/强度
28 钛合金(2.5%的钒,3%的铝)加上0.08%到0.14%的钌
29 钛合金0.08% ~ 0.14%钌,(6%铝,4%钒与ELI)

Ti合金机械强度表

最终拉伸强度最小 屈服强度最低 伸长率
年级 ksi. Mpa ksi. Mpa
Gr 1 35 240 25 170 24
Gr 2 50 345. 40 275 20.
Gr 3 65 450. 55 380 18
Gr 4 80 550. 70 485 15
Ti 2% Pd (Gr.7) 50 345. 40 275 20.
Gr 12 70 483 50 345. 18
TI-6AL-4V 130 895. 120 830 10
ti - 4 - al - 4 - mo - 1.5 - sn 170 1160 125 850 10
Ti-10-2-3 180 1250 160 1100 8
Ti-15-3 185 1280 160 1100 10
TI-6-2-4-2 160 1100 120 830 10
TI-6-2-4-6 190 1300 140 970 10

金属钛的熔点

熔点范围 1670 DEG C,3038°F,1943 K.
沸点范围 3287℃,5949℉,3560 K
密度(g厘米−3) 4.506

钛合金制造商

钛产品的特殊价格
